En allsidig THX-sertifisert Select-vegghøyttaler med MAT™
Innfellingshøyttaleren Ci3120QLM-THX møter den økende etterspørselen etter høytytende løsninger i flerbruksrom, enten i hjemmekinoløsninger, eller musikksoner, der dedikerte rom ikke nødvendigvis er mulig. Med et 12. generasjons Uni-Q-driversystem og KEF sin banebrytende "Metamaterial Absorption Technology" (MAT) er Ci3120QLM-THX THX-sertifisert Select. Den gjenskaper effektfull kinolyd med førsteklasses lydkvalitet, noe som gjør den ideell for mellomstore rom.
Summary of features
• Metamaterial Absorption Technology
eliminates 99% of high-frequency distortion
for pure, natural sound
• 100mm (4 in.) 12th generation Uni-Q with
a 19mm (0.75 in.) vented aluminium dome
embedded with MAT for exceptional acoustic
accuracy
• Two specially designed 120mm (4.75 in.) long
throw bass drivers minimises distortion for
an ultra-deep, clean bass performance
• The 3-way system design and crossovers
allow each driver to be optimally configured
for its specific role
• THX® Certified Select for high impact cinema
sound in a medium-sized room
• Ultra-Thin Bezel (UTB) allows for easy
blending into the room

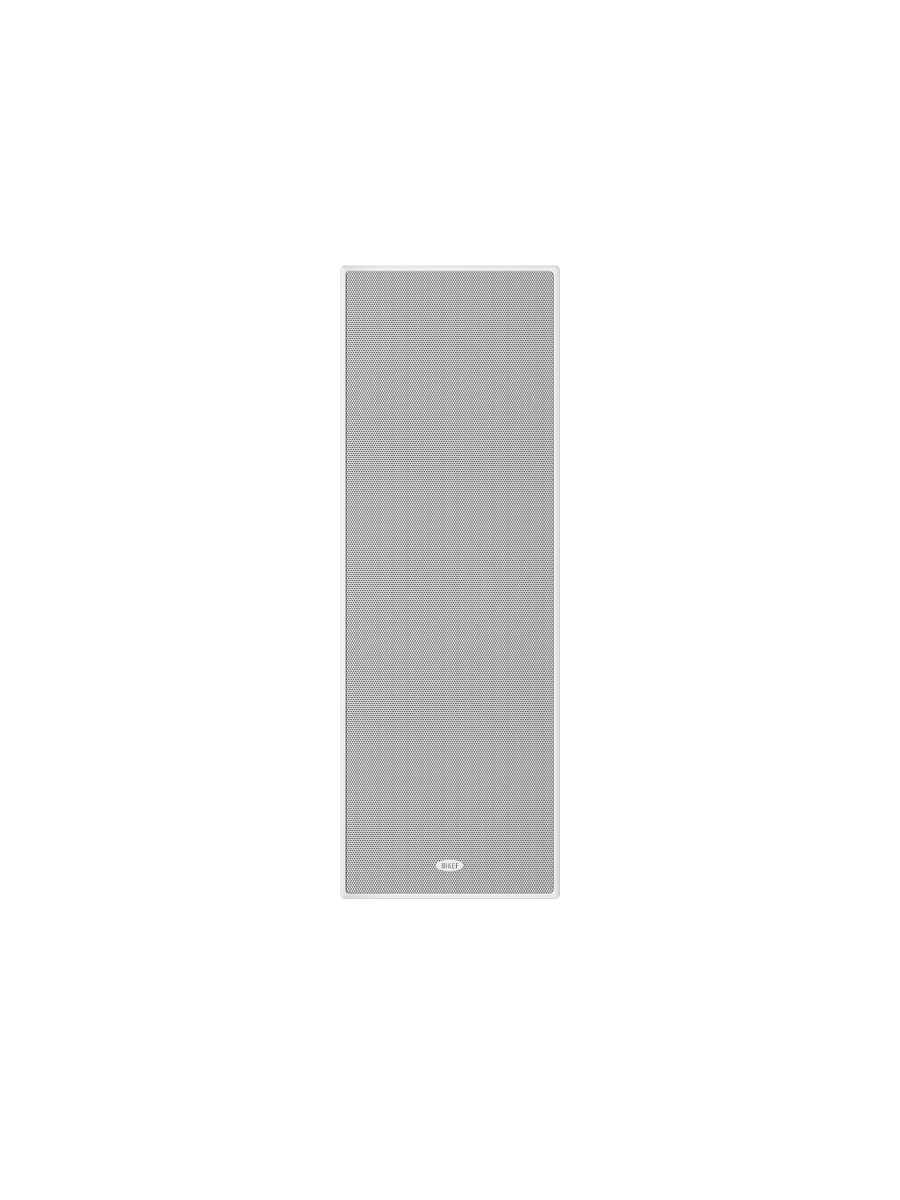

• Paintable magnetic metal grille that fits
effortlessly into the interior
Specifications
Model Ci3120QLM-THX
Series Q Series
Nominal impedance 4Ω
Sensitivity (2.83V/1m) 89dB
Frequency response (±6dB) open-backed 50Hz - 20kHz
Frequency range (-10dB) 42Hz - 20kHz
Nominal coverage (degrees) 150°
Max SPL (dB) 105dB
Crossover frequency 440Hz, 2.75kHz
Drive units LF 2 x 120mm (4.75 in.)
MF 100mm (4 in.) Uni-Q
HF 19mm (0.75 in.) vented aluminium dome with
Metamaterial Absorption Technology1
Recommended amplifier power 25 - 250 W
Recommended high-pass filter (Hz) 35Hz-100Hz*
Product external dimensions
(H x W x D)
536 x 186 x 96 mm
(21.1 x 7.3 x 3.8 in.)
Cut-out dimensions
(H x W)
513 x 163mm
(20.2 x 6.4 in.)
Net Weight 6.2KG (13.7 lbs.)
Gross Weight Single box 8.3KG (18.3 lbs.)
Master box 17.7KG (39 lbs.)
Mounting depth from surface 90mm (3.6")
Ideal Rear Volume(L) 40
Minimum Rear Volume(L) 20
THX-Certified THX Certified Select
Safety and Regulatory Compliance IP64
Ceiling Thickness (Maximum) 36mm (1.42 in.)
Ceiling Thickness (Minimum) 6mm (0.24 in.)
