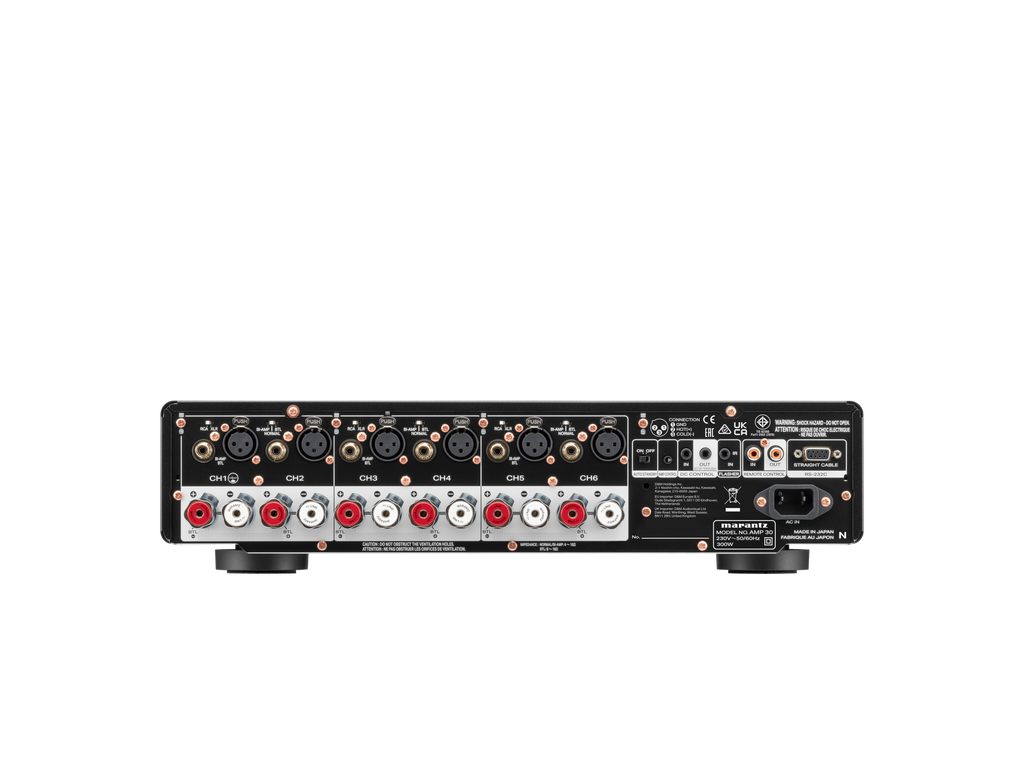

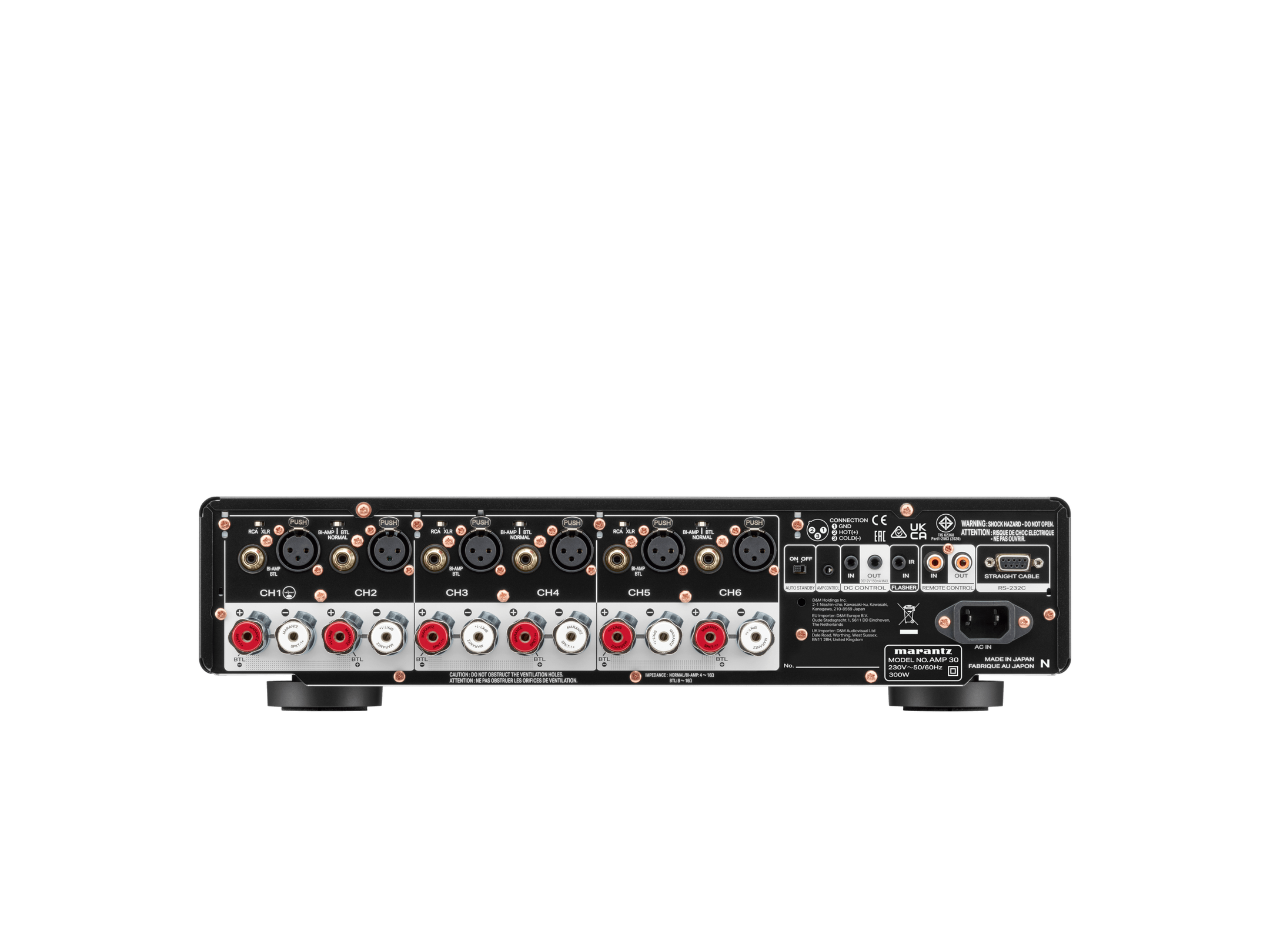

Inputs Outputs
- Main Amplifier inBalanced & Unbalanced: 6ch (Exclusive use by a selector switch.)
- Speaker TerminalSPKT-1+
- Number of Speaker Terminals6
- Bi-Amp Drive /BTL DriveYes / Yes
- Level MeterYes
Multi-Room CI
- RS232 ControlYes
- IR Flasher InYes
- Marantz Remote BusYes
- DC Trigger Input/ Output1 / 1
Specifications
- Number of Power Amps6
- Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL200W / 400W
- Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal400W
- Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal200W
General

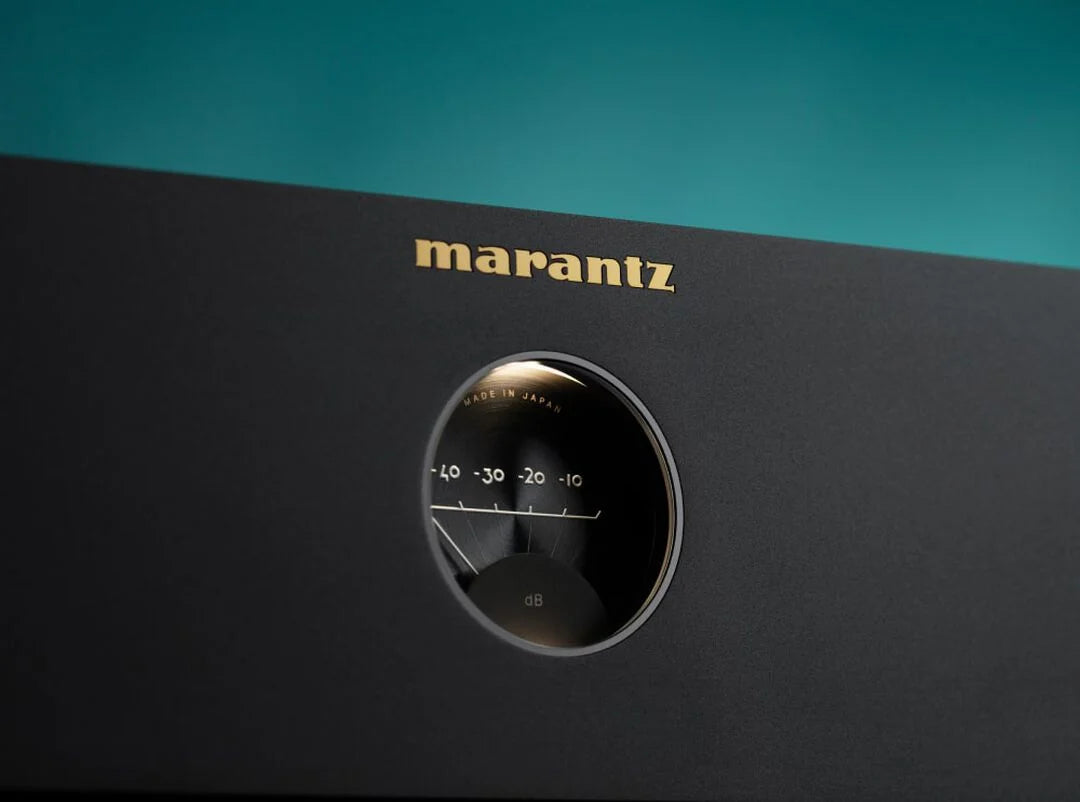

- Front DisplayLevel Meter
- Auto Power OffYes
- Metal Front PanelYes
- Power Consumption300W
- Power Consumption, No-Sound (ECO On / Off)70W
- Standby Consumption0.2W
- Maximum Dimensions (W × D × H)17.4 × 17.4 × 4.4 in.
- Weight 10kg
-
What's in the boxMain unit, quick start guide,
AC cord, Amp control cable,
Remote control cable
