Har du en god RIAA, DAC, Streamer eller server? Da kan du faktisk løfte nivået enda et hakk med Sbooster!
Slike produkter leveres gjerne med helt standard veggvorte, som verken er påkostet eller spesielt avanserte. Disse er i bruk fordi de er svært energiøkonomiske og billige i produksjon. Så hva om man kunne bytte disse billige strømforsyningene og erstatte dem med en velkonstruert lineær PSU med ringkjernetrafo, lavt støygulv, meget presise strømforsyninger?
Det er ingen hemmelighet at kvaliteten på strømforsyningen ofte gir store utslag på kvaliteten når det gjelder lydprodukter. Det er gjerne på dette området at vi ser store forskjeller i Hi-Fi og High-End produkter.
Sbooster bruker avanserte kretser, 2 stegs nettfilter, filter som beskytter for spenningstopp, god skjerming av kretser osv.
Why you need the BOTW Upgrade AC power supply?
A stock supplied AC/AC power supply in general is nothing more than a low cost “EL-type transformer” in a casing. The BOTW upgrade AC power supply is designed to ensure the most stable and low noise AC current, that is possible with an AC power supply.
Stability
A low cost EL transformer has not only the lowest efficiency of all available transformer types, a major drawback is the very poor load regulation of this transformer type. The load regulation is the ratio of the AC output voltage measured with no-load and full-load conditions. With the low cost EL transformer this load regulation is around 20% or worse. The poor load regulation leads to instability and degrades the performance of an audio device significantly.
With the BOTW upgrade AC power supply our goal is to ensure the highest load regulation as possible. For this we use a highly oversized audio grade toroidal transformer. The combination of the technical design and large power reserve of this transformer ensures a very tight load-regulation with ditto stability.
Low noise
With an AC/AC power supply you would expect that the output of the adapter shows a perfect sinewave of 50 or 60Hz: Unfortunately this is not the case. All pollution, that is present on your mains grid, will be present on the output of the AC/AC adapter as well. To prevent, that this mains pollution enters your audio device, the BOTW AC starts immediately with the purification of the AC mains power. The built-in dual stage mains filter with upgraded gold plated audio purpose fuse and earth line choke removes the pollution even before it reaches the transformer.
Turntables
To make the BOTW AC power supply perfect suitable for turntable applications we have added an electrostatic and high frequent magnetic shielding to the transformer as well. An anti-oscillation circuit with Wima capacitors ensures a stable operation of the BOTW AC power supply regardless the type of AC powered audio device. Last but not least, we use our custom-made 16AWG shielded output cable with gold plated connector pins to ensure a low loss distribution of the purified AC power to your device.
Product highlights BOTW upgrade AC power supply
-
Available in 16VAC and 24VAC output voltage, on request in 10VAC, 12VAC and 18VAC
-

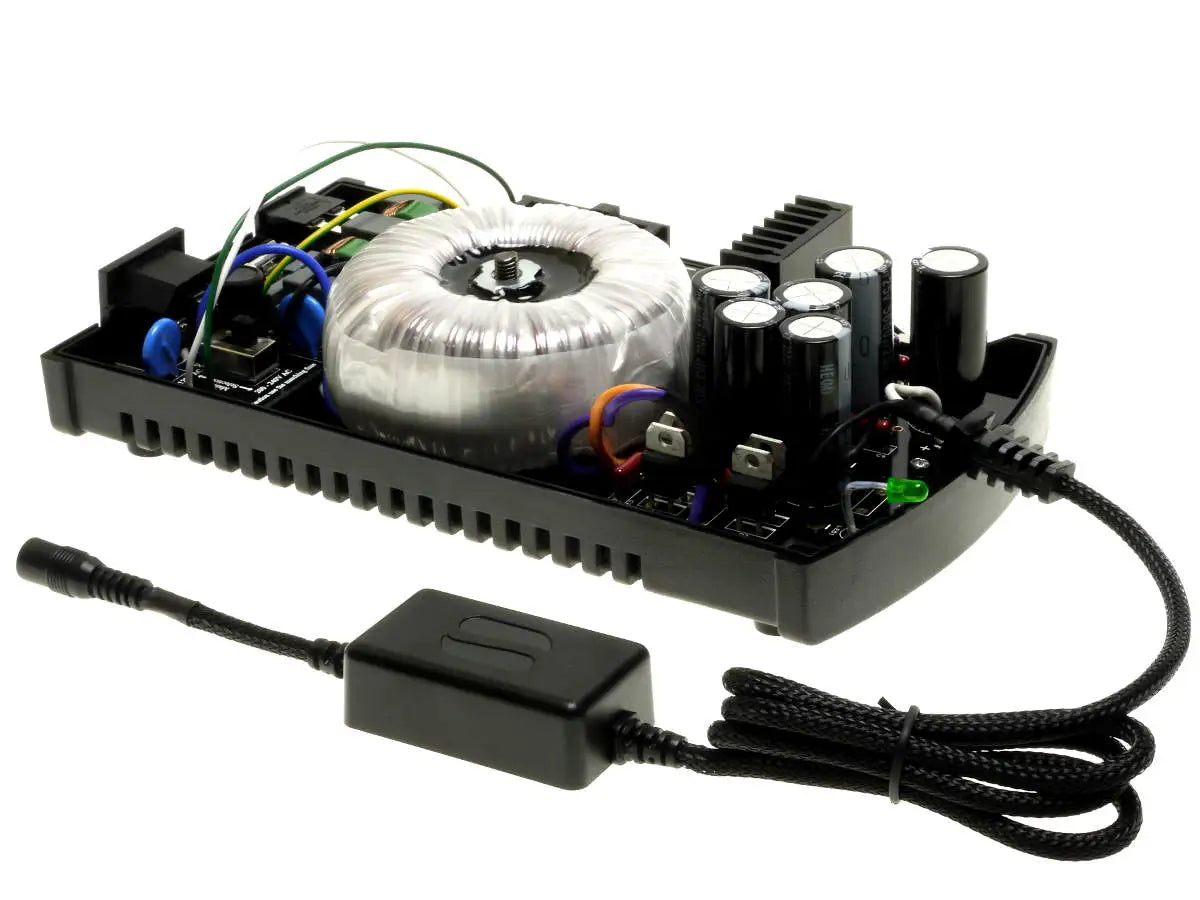

Oversized high efficient audio grade toroidal transformer
-
Transformer with Electrostatic and HF Magnetic shielding
-
Very tight load regulation for stable operation
-
Low noise AC output
-
IEC 14 power inlet suitable for High-end mains cables
-
High performance dual stage mains filter with Earth line choke
-
AC mains overvoltage protection circuit
-
Short-circuit protection
-
Thermal overload protection circuit
-
High quality X2 safety rated polypropylene film capacitors in the mains filter
-
High quality Wima polypropylene film capacitors in the AC PCB
-
AC output cable with:
-
High quality double sided PCBs with 2oz. copper and gold plated finish
-
Custom-made AC-plugs in most common sizes for maximum flexibility
-
Dimmable LED light
-
CE approved
-
Made in the EU
Inneholder:
1x BOTW P&P ECO
1x DC tip 5.5 x 2.5 x 11mm
1x DC tip 5.5 x 2.1 x 11mm
1x DC tip 5.0 x 3.0 x 10mm (HP plug)
1x DC tip 4.8 x 1.7 x 10mm
1x DC tip 4.0 x 1.7 x 10mm
1x DC tip 3.5 x 1.35 x 9.5mm
1x Micro USB plug
1x Manual
